SETUP

Firmware & Drivers

Firmware: No firmware update is currently available for Numark NVII. However always check the Numark website for any updated notifications

Drivers: Windows users install the latest drivers from Numark.
MAC OS X users don't need to install any drivers.

VirtualDJ 8 Setup

Download and install VirtualDJ 8 from our Downloads Page
(in case you have not done already)

Once VirtualDJ 8 is launched, a Login Window will appear. Login with your virtualdj.com account credentials. A Pro Infinity or a Pro Subscription License is required to fully use the Numark NVII

Without any of the above Licenses, the controller will operate for 10 minutes each time you restart VirtualDJ.
Buy a license

A detection window will appear next verifying proper connection with the NVII.

Click on the "Use Soundcard" button in order VirtualDJ to apply the pre-defined audio configuration (speakers need to be connected to the rear side of the unit in this case).

Click on the Change skin button in order the 4 Decks default skin of VirtualDJ to be loaded.

Click to OK

Two addtional detection window will appear next to verify the proper connection of the 2 available LCD Screens.

Click to OK

The unit is now ready to operate.

Advanced Setup

MIDI Operation
The unit should be visible in the CONTROLLERS tab of Config as 3 separate devices and the “factory default” available/selected from the Mappings drop-down list for all 3 of them. The factory default Mapping offers the functions described in this Manual, however those can be adjusted to your needs via VDJ Script actions.

Find more details at
VDJ Pedia

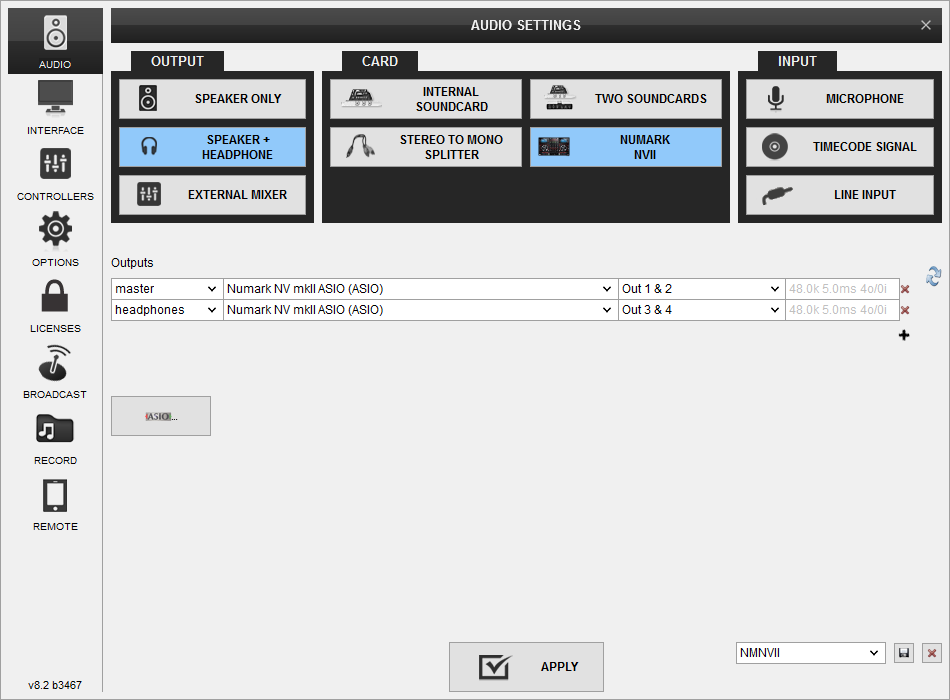

AUDIO Setup

The unit has a pre-defined Audio setup and a special button in the AUDIO tab of Config to provide that. Alternative Audio setups can be applied in the same window.

For further software settings please refer to the Manuals of VirtualDJ 8. Layout
